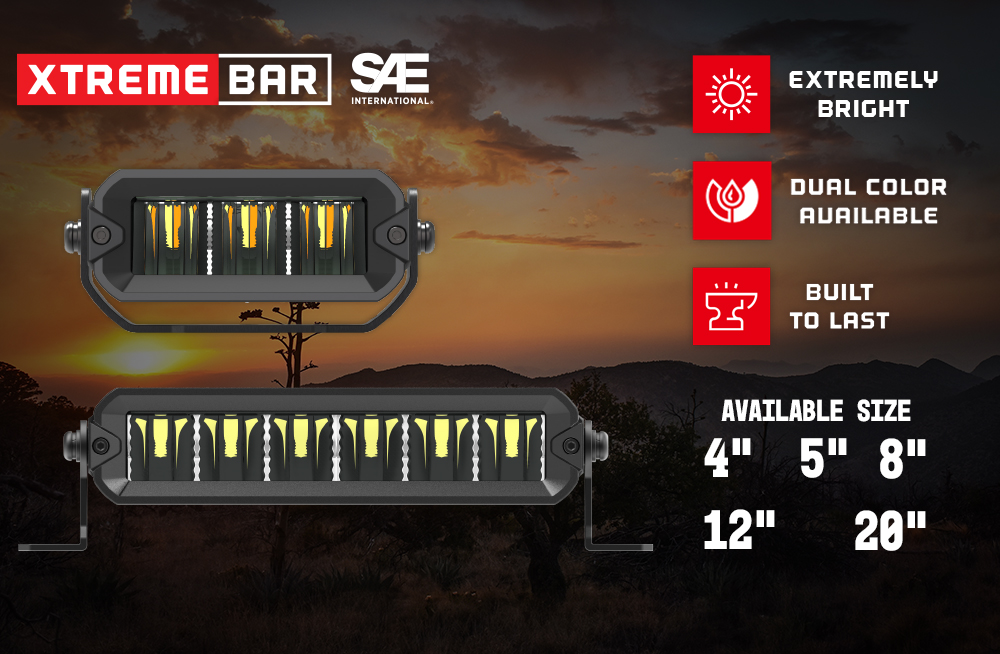

The all-new Xtreme Bar expands the Tiny Monster Grille lineup with extreme performance and versatile fitment. Available in 4″, 5″, 8″, 12″, and 20″ lengths, these compact yet powerful light bars are designed to fit tight grille and bumper openings where traditional bars cannot. Built as a core module of the Tiny Monster Grille system, the Xtreme Bar integrates cleanly with vehicle-specific mounting solutions for a secure, no-drill installation and true OEM-style appearance.

Offered in both single-color and dual-color configurations, select models allow you to switch between crisp white for driving and yellow or amber for fog, with strobe mode available for added visibility. Compact in size, extreme in output—engineered for seamless factory integration.

FEATURES + SPECIFICATIONS

• Light Output: 1,200-8,900 lm
• Power: 20-110W @ 13.6V DC
• Current: 1.5-11 A @ 13.6V DC
• Voltage: 9- 48V DC
• Widths Available: 4″, 5”, 8″, 12”, 20”
• Beam Patterns Available:
       • Fog + Strobe Light
       • Auxiliary High Beam
       • Auxiliary High Beam + Fog + Strobe
• Warranty: 5 years
4” DRIVING BEAM 6401D White
Effective Lumens 1,800 lm
Power 20W
Dimensions 4.8 x 2.6 x 1.6”
4” Fog Beam 6401F Dual Color
Effective Lumens 1,200 lm
Power 20W
Dimensions 4.8 x 2.6 x 1.6”
5” Driving Beam 6403D Dual Color
Effective Lumens 2,000 lm
Power 20W
Dimensions 5 x 2.5 x 1.5”
8” Driving Beam 6402D(White)/6402DT(White)/6402YT(Yellow)
Effective Lumens 3,400 lm
Power 45W
Dimensions 7.8 x 2.6 x 1.6”
12” Driving Beam 62101(White)/62102(Yellow)
Effective Lumens 3,400 lm
Power 60W
Dimensions 12 x 1.8 x 1.5”
20″ DRIVING BEAM 64033 Dual Color
Effective Lumens 8,900 lm
Power 110W
Dimensions 19.7 x 2.8 x 1.5”
